Stepping Down

1. Why This is a Thing

So, you've got a project brewing, maybe an Arduino-based weather station or a custom LED display, and you're using a spiffy 5V power supply. Great! But then you realize that one of your key components needs a more delicate 3.3V. What do you do? Panic? Nope! We're here to walk you through the process. It's actually simpler than you might think, and definitely less stressful than trying to convince your cat to wear a tiny hat.

Many modern microcontrollers, sensors, and other electronic goodies operate at 3.3V because it's more power-efficient and sometimes allows for smaller, faster transistors. Connecting a 5V signal to a 3.3V input can be disastrous. Think of it like trying to fit a square peg into a round hole, but with sparks. So, safely converting 5V to 3.3V is a vital skill for any electronics enthusiast.

Think of voltage like water pressure. Your 5V source is like a garden hose cranked up, and your 3.3V component is a delicate flower that only needs a gentle sprinkle. You can't just blast it with the full pressure! You need a regulator or some other method to reduce that pressure to a safe and usable level. We wouldn't want to fry our flower, would we?

In this guide, we'll explore several methods for achieving this voltage conversion, from the simplest resistor dividers to more sophisticated voltage regulators. Each approach has its pros and cons, so we'll help you figure out which one is right for your specific project and budget. Let's dive in!

Method 1

2. The Simple, but Imperfect Solution

Ah, the resistor divider — the duct tape of electronics. It's simple, cheap, and surprisingly effective in certain situations. The basic idea is to use two resistors in series to "divide" the voltage. The voltage at the midpoint between the resistors will be lower than the input voltage, and by choosing the right resistor values, you can get close to your desired 3.3V. It's like creating a tiny dam to control the flow of electrons!

Here's the formula: Vout = Vin (R2 / (R1 + R2)), where Vin is your 5V source, R1 is the resistor connected to the 5V source, R2 is the resistor connected to ground, and Vout is the voltage you'll get at the point between the resistors. To get 3.3V from 5V, you could use a 1.7k resistor for R1 and a 3.3k resistor for R2. Plug those values into the formula, and you'll see it works out (approximately!).

Now, before you rush off to solder something, there's a catch! Resistor dividers are sensitive to load. If you connect something that draws a significant amount of current to the 3.3V output, the voltage will drop. It's like trying to fill a bucket from your tiny dam — the water level (voltage) will plummet. This makes resistor dividers unsuitable for powering anything that requires a stable voltage or draws more than a tiny amount of current. Think of them as more of a voltage signal divider, than a power supply.

However, for very low-current applications, like level shifting a digital signal (converting a 5V digital signal to a 3.3V signal), a resistor divider can be a simple and effective solution. Just be mindful of the limitations and don't expect it to power your entire project!

Method 2: The Regulator Superhero — Linear Regulators

3. LM1117 and Friends: Stable and Reliable

For a more robust and reliable solution, we turn to the superhero of voltage conversion: the linear regulator. These little chips are designed to take an input voltage (like 5V) and output a stable, regulated voltage (like 3.3V), regardless of changes in the input voltage or the load current. It's like having a dedicated voltage bouncer, ensuring that the voltage stays constant no matter what shenanigans are going on!

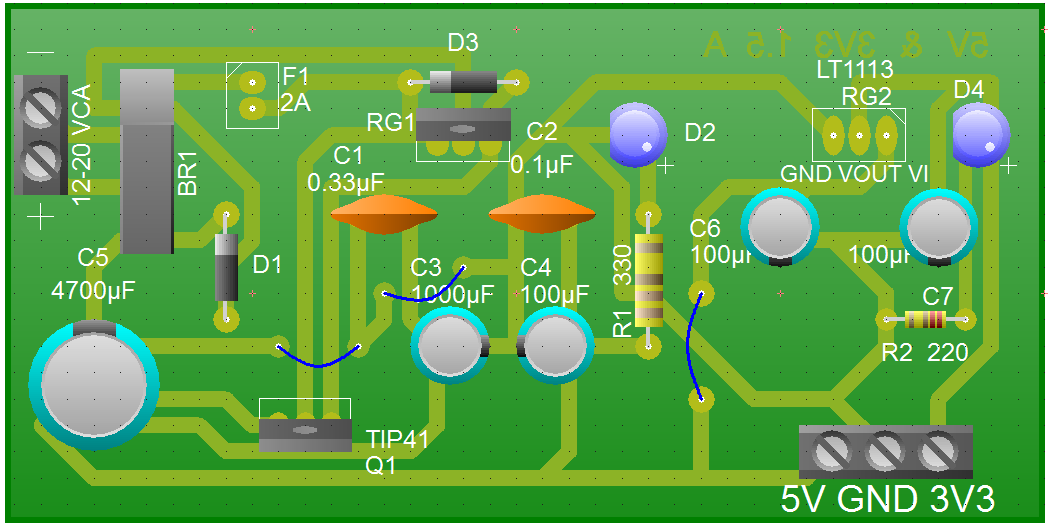

One popular choice is the LM1117-3.3. This is a three-terminal regulator that's easy to use. You simply connect the 5V input to the input pin, ground to the ground pin, and you get a nice, clean 3.3V output from the output pin. Some regulators might require a small capacitor on the input and output to improve stability. Check the datasheet for the specific regulator you're using.

Linear regulators work by dissipating excess voltage as heat. So, if you're dropping a significant amount of voltage (e.g., converting 12V to 3.3V) or drawing a lot of current, the regulator can get quite hot. You might need to add a heatsink to help dissipate the heat and prevent the regulator from overheating. It's like giving your superhero a cooling vest so they don't overheat while fighting voltage crime!

Linear regulators are great for providing a stable 3.3V supply for a variety of projects, from powering microcontrollers to driving LEDs. They're relatively inexpensive and easy to use, making them a popular choice for many electronics enthusiasts. Just remember to check the datasheet for the maximum input voltage and output current limits, and consider a heatsink if necessary.

Method 3: Switching Regulators — The Efficient Powerhouse

4. Buck Converters for the Win

When efficiency is paramount, switching regulators step up to the plate. Unlike linear regulators that burn off excess voltage as heat, switching regulators use a more clever approach. They rapidly switch the input voltage on and off, storing energy in an inductor and capacitor, and then releasing it at the desired voltage. It's like juggling energy instead of just throwing it away!

One common type of switching regulator is the buck converter, which is used to step down voltage (e.g., from 5V to 3.3V). Buck converters can be significantly more efficient than linear regulators, especially when there's a large difference between the input and output voltages. This means less heat, longer battery life, and overall better performance.

Switching regulators are a bit more complex to design and use than linear regulators. They typically require more external components, such as inductors, capacitors, and diodes. However, pre-built buck converter modules are readily available and easy to integrate into your projects. These modules often come with all the necessary components already installed, making them almost as easy to use as linear regulators.

If you're working on a battery-powered project, or if you need to supply a significant amount of current at 3.3V, a switching regulator is definitely worth considering. The increased efficiency can make a big difference in the overall performance and longevity of your project. Just be prepared for a slightly steeper learning curve, or opt for a pre-built module to simplify the process.

Method 4: Level Shifters — The Signal Translator

5. Bridging the Voltage Gap

Sometimes, you don't need to power a whole circuit at 3.3V, but you need to interface between 5V and 3.3V logic levels. This is where level shifters come in handy. They are designed to translate signals between different voltage domains, preventing damage to your sensitive 3.3V components. Think of them as translators, ensuring that the 5V signals are properly understood by the 3.3V world.

A simple way to achieve level shifting is, as mentioned before, the resistor divider for signals. However, this only works for 5V to 3.3V. For two way communication, you need a dedicated level shifter IC. These ICs use transistors or other circuitry to reliably translate the voltage levels. There are many different types of level shifters available, including unidirectional and bidirectional ones.

For example, if you are connecting a 5V Arduino to a 3.3V sensor, you would use a level shifter on the data lines to ensure that the sensor doesn't get damaged by the higher voltage. Likewise, if the sensor sends data back to the Arduino, a level shifter can boost the 3.3V signal to a 5V level that the Arduino can understand. It is more elegant than hacking with resistors alone.

Using level shifters is crucial for reliable and safe communication between different voltage domains. They prevent damage to your components and ensure that your signals are properly interpreted. While resistor dividers can work for simple cases, dedicated level shifter ICs provide a more robust and reliable solution, especially for bidirectional communication or high-speed signals.

Choosing the Right Method

6. It Depends On Your Particular Situation

The best method for getting 3.3V from 5V depends on your specific needs and constraints. Resistor dividers are cheap and easy for very low current signal translation. Linear regulators are a good general-purpose solution for powering small circuits, as long as you don't mind the heat. Switching regulators are the most efficient, but also the most complex.

Consider the current requirements of your 3.3V circuit. If it's only a few milliamps, a resistor divider or a linear regulator might be sufficient. If it's hundreds of milliamps or more, a switching regulator is probably the better choice. Also, think about the efficiency requirements. If you're running on batteries, a switching regulator will help you extend the battery life.

Don't forget about the physical size and complexity of the solution. Resistor dividers are the smallest and simplest, while switching regulators can require more components and a more complex layout. Linear regulators offer a good balance between size, complexity, and performance.

Ultimately, the choice is yours. Experiment with different methods, read datasheets carefully, and don't be afraid to ask for help if you get stuck. With a little bit of knowledge and experimentation, you can confidently convert 5V to 3.3V and power all your favorite electronic gadgets!

FAQs: Conquering Voltage Conversion Concerns

7. Your Burning Questions Answered

Q: Can I just connect a 5V signal directly to a 3.3V input?

A: Absolutely not! Doing so could damage your 3.3V component. The higher voltage can exceed the component's maximum voltage rating, leading to permanent damage. It's like trying to pour a gallon of water into a teacup; it's going to overflow, and in this case, the teacup (your component) might break.

Q: How do I know which resistor values to use for a resistor divider?

A: Use the formula Vout = Vin (R2 / (R1 + R2)), where Vin is your 5V source, R1 is the resistor connected to the 5V source, R2 is the resistor connected to ground, and Vout is the voltage you want (3.3V). Solve for R1 and R2. There are many online resistor divider calculators that can simplify this process. Remember, the load on the output will affect the voltage, so this is only suitable for very low current applications. Also, consider using standard resistor values that are readily available.

Q: Do I need a heatsink for my linear regulator?

A: It depends on the input voltage, output current, and the regulator's thermal resistance. If the regulator gets hot to the touch, you probably need a heatsink. The datasheet for the regulator will provide information on how to calculate the power dissipation and the required heatsink size. You can also use an online heatsink calculator to help you determine the appropriate heatsink for your application.

Q: Where can I find more information about switching regulators?

A: The datasheets for switching regulator ICs are a great source of information. There are also many online tutorials, application notes, and forums dedicated to switching regulators. Search for "buck converter tutorial" or "switching regulator basics" to find helpful resources. Also consider looking at the websites of major electronic component manufacturers like Texas Instruments, Analog Devices, and Linear Technology.
